Micro Clock mkIII XB
Suggested Products
We recommend these products as a replacement or upgrade from the Micro Clock mkIII XB
Revolution Clock XC
Word clock with Macro MMC, Suspended Oscillation, 8 BNC outs, and 2 S/PDIF, optical, and AES/EBU outs
The Micro Clock MKIII XB is the most accurate word clock we’ve developed to date. With only 0.6pS RMS of jitter at the BNC outputs, it has less than one third of the jitter of the standard Micro Clock MKIII! It boasts incredibly accurate crystal oscillators and superior quality galvanic isolation, both of which contribute to the extraordinarily low jitter measurement.
Technical
Jitter
- 0.6pS RMS (BNC outputs)
Outputs
- 6 BNC, 1 XLR AES, 1 RCA S/PDIF, 1 Optical S/PDIF (recommended max. cable length = 1,000ft of high quality, 75Ω coaxial cable)
- BNC: 75Ω, 5V unterminated
- RCA S/PDIF: 75 Ω, unbalanced
- AES XLR: 110 Ω, balanced
Clock Frequencies
- BNC (kHz) – 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384
- RCA S/PDIF & AES (kHz) – 44.1, 48, 88.2, 96, 176.4, 192
- Optical S/PDIF (kHz) – 44.1, 48, 88.2, 96
Power
- 9VDC (6W power consumption)
Power connector
- 2.1mm barrel connector with 5.5mm outer diameter (center pin positive)
Weight
- 2.2lbs
Dimensions
- 6.5”L x 6”W x 1.75”H (without rack ears installed)
Shipping weight
- 4lbs
Shipping dimensions
- 13” x 13” x 5”

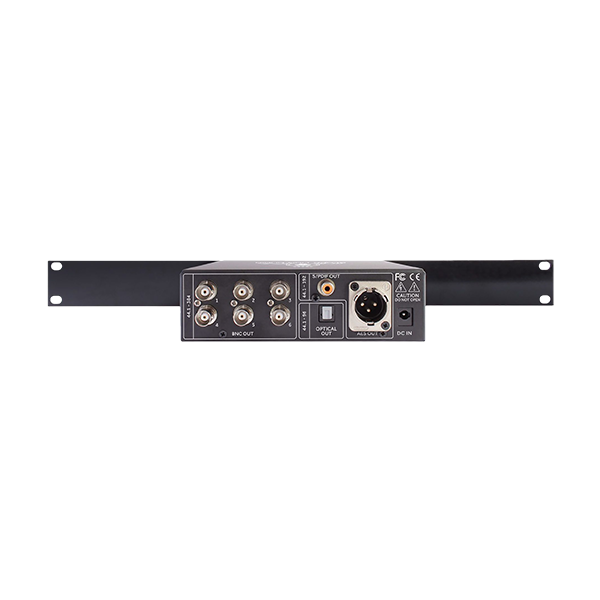

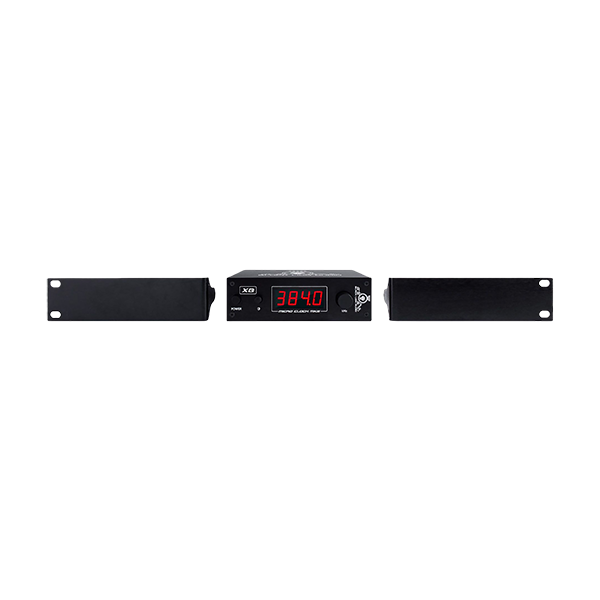

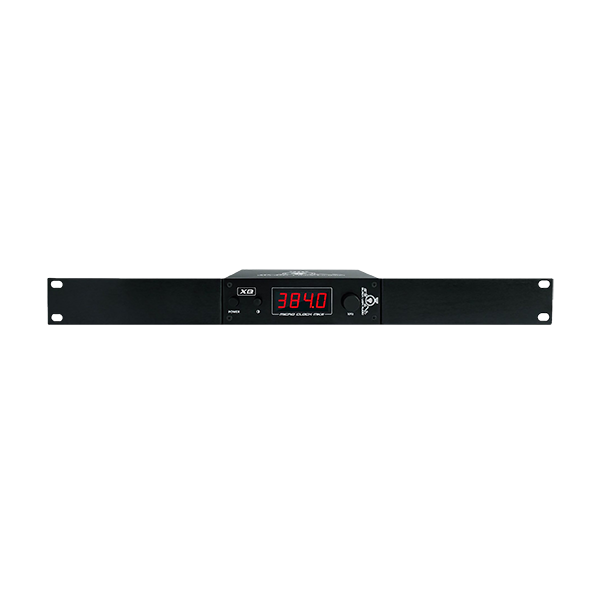

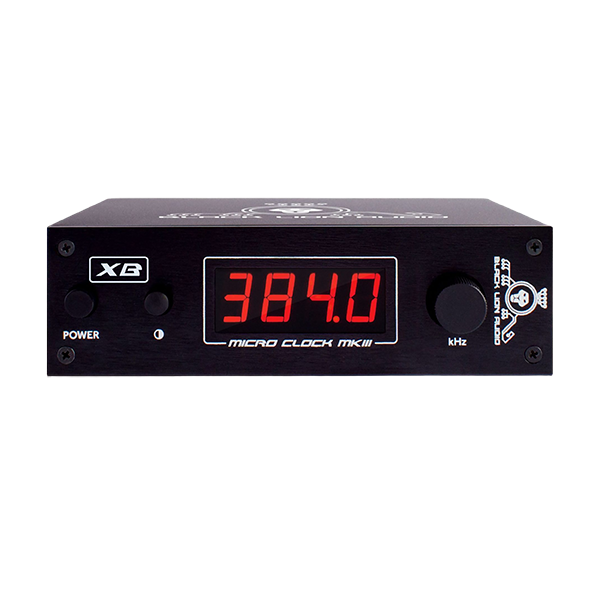

Product Images
Click the image to enlarge.
