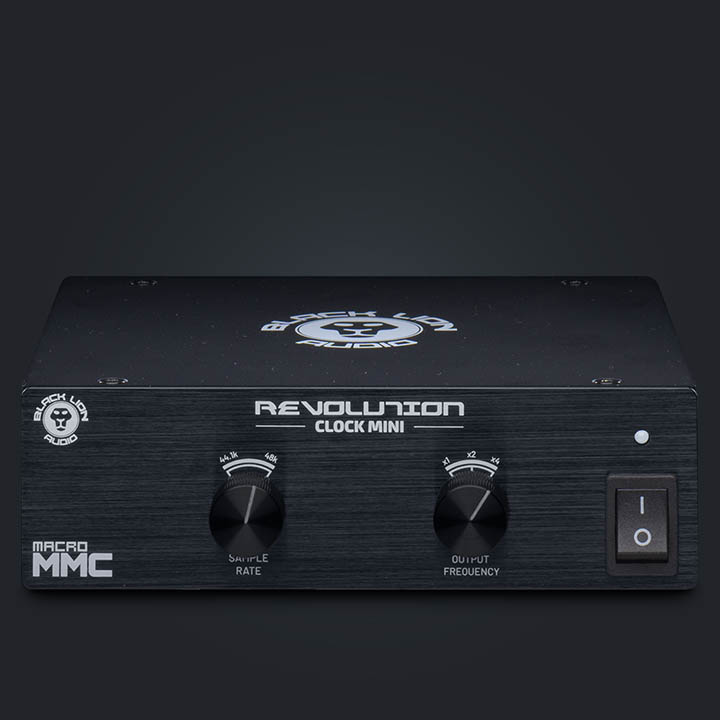

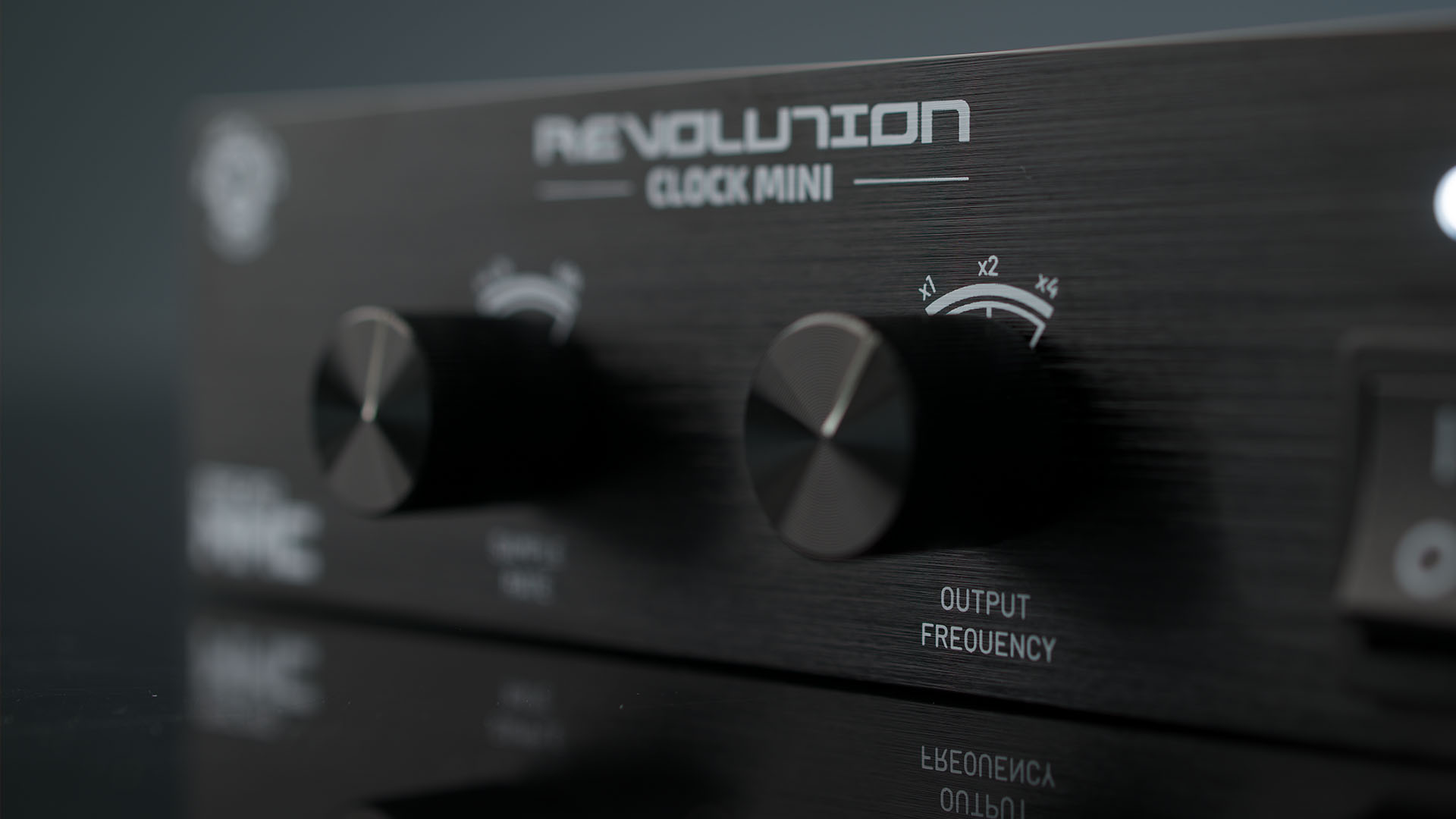

Revolution Clock Mini
Portable word clock with Macro MMC and 3 BNC outs
US PRICE: $299
Take that show on the road.
Revolution Clock Mini is a world-class word clock in a small-footprint enclosure. You get 3 BNC outputs for clocking your external devices from 44.1 kHz to 192 kHz. Patented Macro MMC tech ensures minimal jitter and low noise. Get studio-caliber clocking anywhere and everywhere with Revolution Clock Mini.
Revolution Clock Mini delivers rock-solid clocking to keep all of your digital audio devices running in perfect sync over BNC. 44.1 kHz - 192 kHz sample rates are supported. And thanks to its small footprint, you’ll enjoy studio-caliber clocking anywhere and everywhere. It's ideal for touring acts that rely on digital equipment for live shows!
With only 0.5pS RMS of jitter at the BNC outputs, your devices will be running in perfect sync, and your productions will sound their absolute best.
Revolution Clock Mini can sync up to three devices over BNC. Once a system is set up and clocked correctly, many users observe a greater sense of space and depth thanks to more accurately-reproduced reverbs and stereo imaging. Some even notice elements of their mixes they didn’t even hear prior to synced clocking!
Why clock?
Short answer: For supreme audio fidelity when using multiple digital audio devices.
Long answer: When running multiple digital audio devices simultaneously without clock sync, clocking jitter can result in smearing of the stereo field, and is particularly noticeable in transients and higher-frequency material like cymbals and lengthy reverb tails.
It’s also worth noting that the effects of superior clocking are cumulative. Noise reduction and jitter may be hard to discern on a two-track recording of vocals and guitar. But if you record a 64-track production through poorly clocked hardware, all that noise and jitter begins to stack up!
MEMS Oscillators for superior stability.
MEMS (Microelectromechanical systems) oscillators won out in both subjective listening tests and objective stability measurements when compared to traditional quartz crystal oscillators. MEMs require no thermal solution for stability as their stability is less affected by temperature. Furthermore, MEMs oscillators enjoy greater shock resistance than quartz crystals.
Patented Macro-MMC.
Macro-MMC is a unique clocking technology developed from our years of experience in creating dedicated word clocks, as well as our interface modification service. Macro-MMC ensures low noise and minimal jitter, accomplished through strict component selection and proprietary methods of signal propagation. We start with a high quality oscillator (timing signal) and apply proprietary methods of signal transfer throughout the unit to keep the quality and accuracy intact all the way up to the output of the device.
Technical
Jitter0.5 pS RMS (BNC outputs)

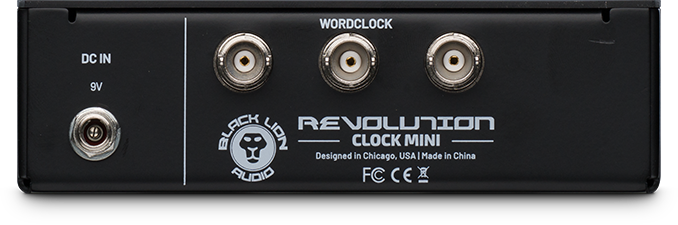

Outputs3x BNC
Output impedance75 Ω, 5V unterminated
Clock frequencies44.1, 48, 88.2, 96, 176.4, 192
Power9V DC (6 W power consumption)
Power connector2.5 mm barrel connector with 5.5mm outer diameter (center pin positive)
DimensionsWidth: 15.24 cm (6”)
Height: 4.45 cm (1.75”)
Depth: 13.97 cm (5.5”)Weight.91 kg (2 lbs)
