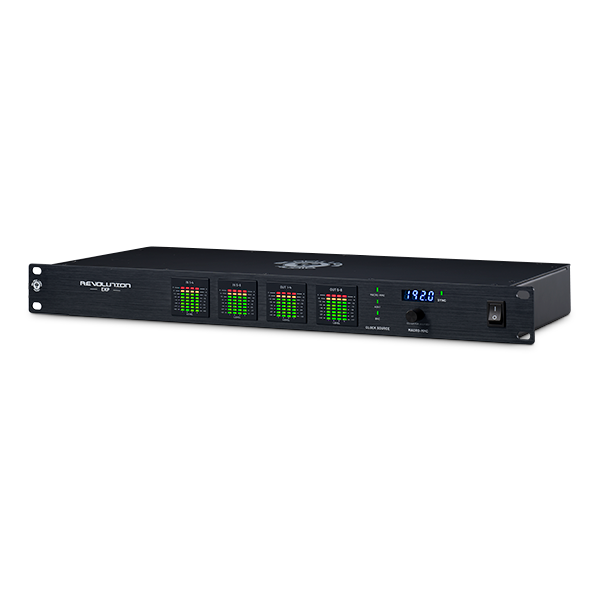

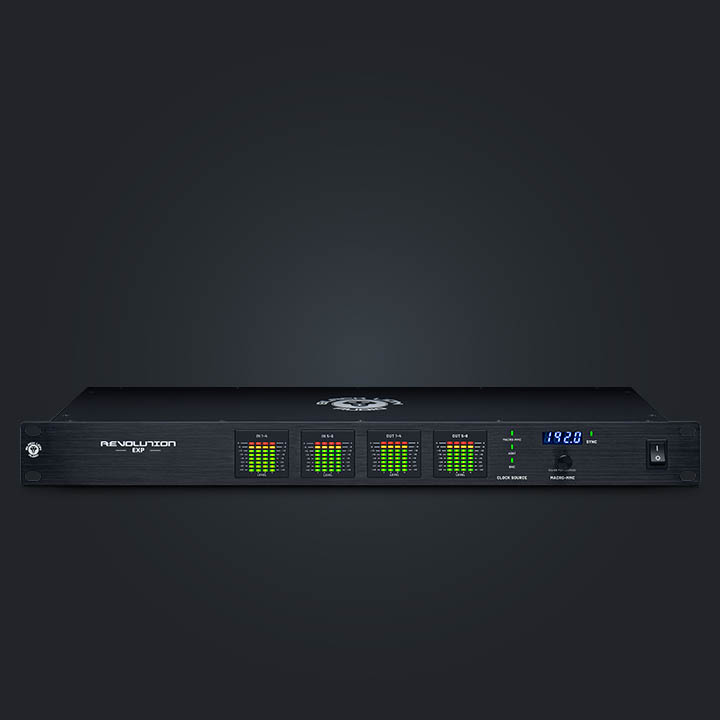

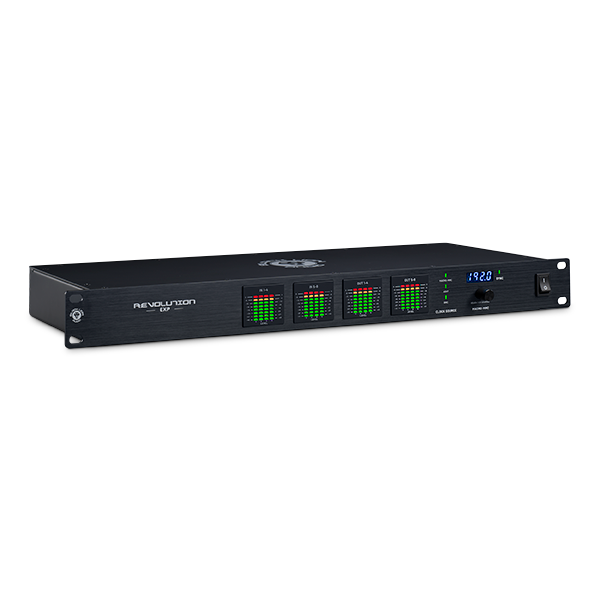

Revolution EXP
8x8 AD/DA Converter and Word Clock with ADAT
US PRICE: $799
Add more inputs and outputs to your interface.

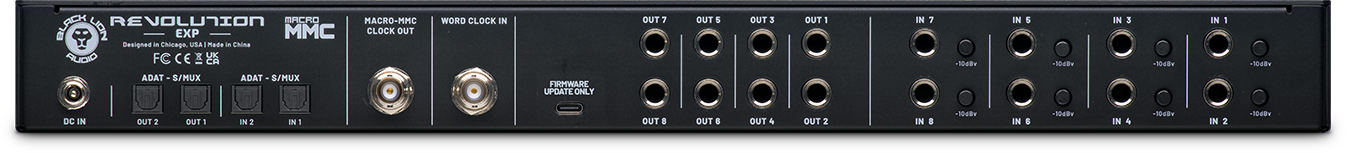

Expand your studio connectivity by adding more inputs and outputs to your ADAT-compatible interface with the Revolution EXP! You get 16 analog TRS connections (8-in, 8-out), as well as 16 channels of ADAT I/O. Boutique component selection and proprietary Macro MMC clocking ensure that the Revolution EXP makes every device you connect to it sound its absolute best.
Grow your studio.
Expanded I/O will let you take your production workflow to exciting new places. Add hardware compressors, stereo reverbs, or any other external hardware processor to your DAW workflow. Capture multi-channel recordings of your hardware synths and drum machines. Connect your preamps to the eight inputs to record multi-channel drums.Use the eight outputs to connect your Revolution EXP to an analog summing mixer; use two inputs for your stereo return. Or use those eight outputs to connect a multi-speaker array and mix in Dolby Atmos!
Superior macro MMC clocking and flexible sample rates.
Revolution EXP boasts Black Lion’s Macro-MMC clocking technology, based on our numerous clocking products and interface modifications. Beyond merely keeping all connected devices in sync, its extraordinarily low jitter ensures extraordinary clarity and sheen in the high-end. The Revolution EXP supports sample rates up to 192 kHz. Use it as the primary word clock for your entire studio, or sync it to your favorite clocking device.
A difference you can see, feel, and hear.

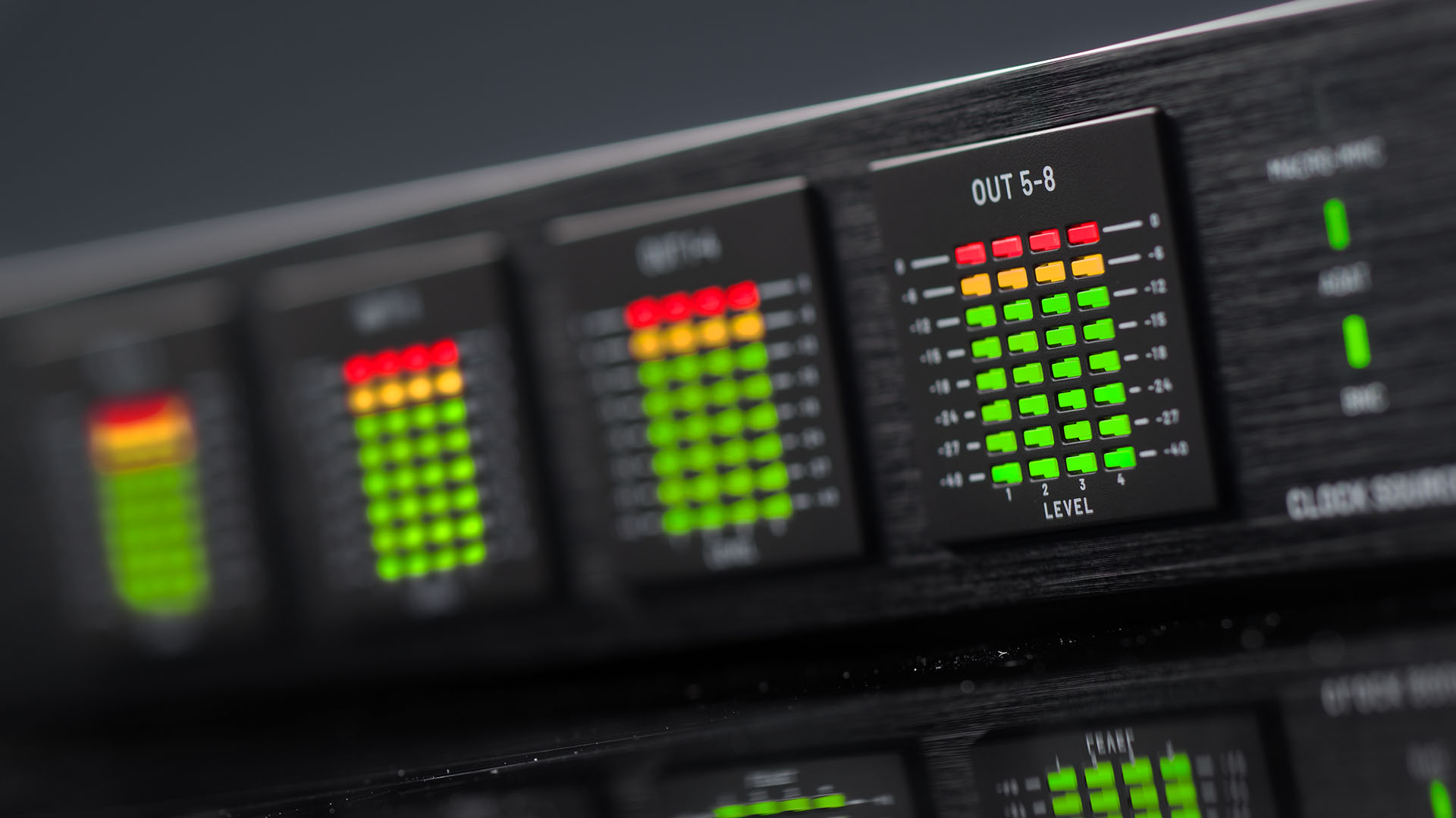

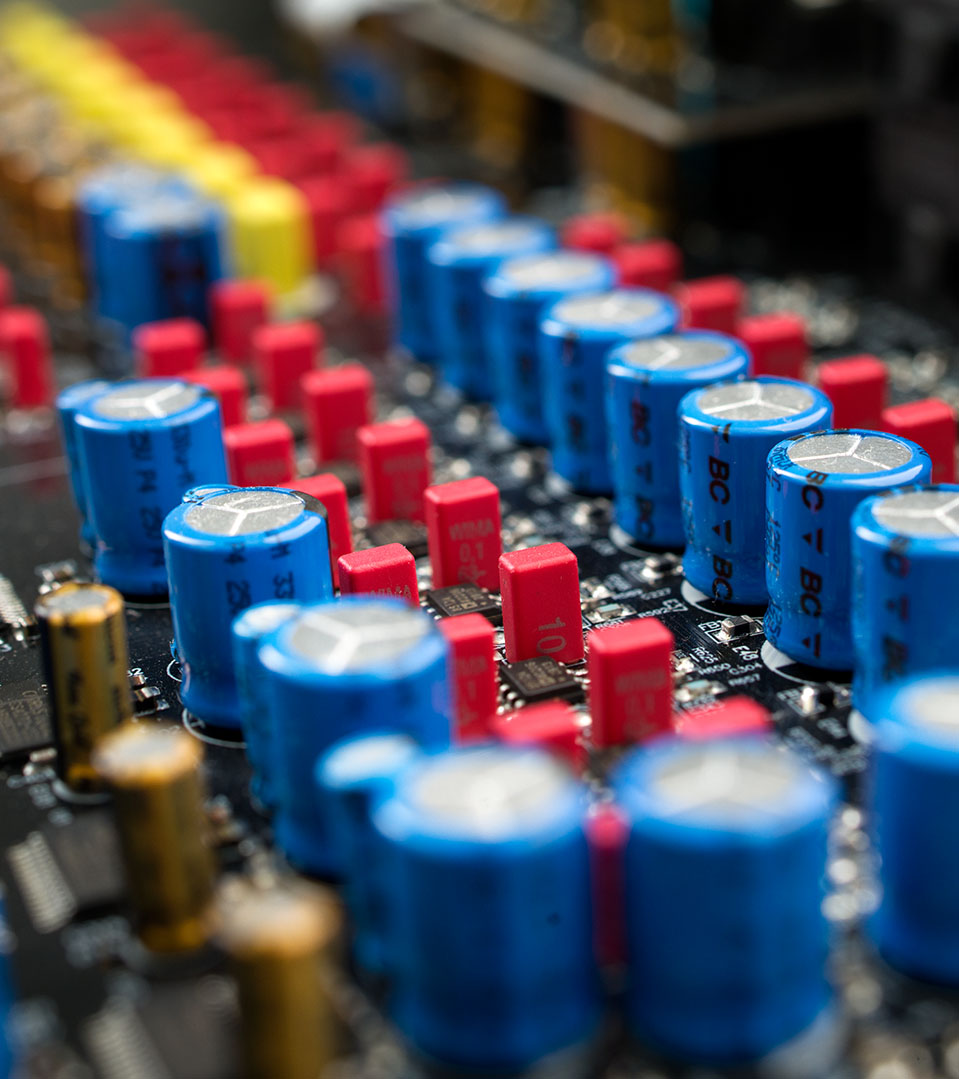

The Revolution EXP’s road-worthy metal construction ensures long life. Its bright, eight-stage metering of every Input and Output makes for quick, accurate, at-a-glance level checks. All analog inputs have a -10 dB pad for managing hotter signals. Boutique components from Nichicon, Vishay and Wima ensure maximum signal quality and low noise. A USB-C connection is provided for future firmware updates.
Technical
Line Inputs
Input Impedance 19.906 KΩ
Maximum Input (maximum input level @gain min) 15.9 dBu
Frequency Response +/-0.025 dB
THD + N 0.00143%
Dynamic Range 112.837 dB
Crosstalk -119.015 dB
Line Input -10dBv
Input Impedance 6.926 KΩ
Maximum Input 15.9 dBu
Frequency Response +/-0.025 dB
THD + N@ 15.7 dBu, dB, Sampling rate 48K 0.00111%
Dynamic Range 112.837 dB
Crosstalk -119.090 dB
Line Outputs
Output Impedance 200 Ω
Max Output Level 16dBu
Frequency Response ±0.055 dB
THD+N 0.00077%
Dynamic Range 110.175 dB
*Dynamic range is affected by our preference to tuning individual stages for tonality. We found that the best sounding parts in the output path weren’t necessarily the lowest noise components but they resulted in an optimal tone and signal purity that is instantly apparent to the listener. Electronic design is a game of compromise and we’re confident your ears will agree with our choices.
