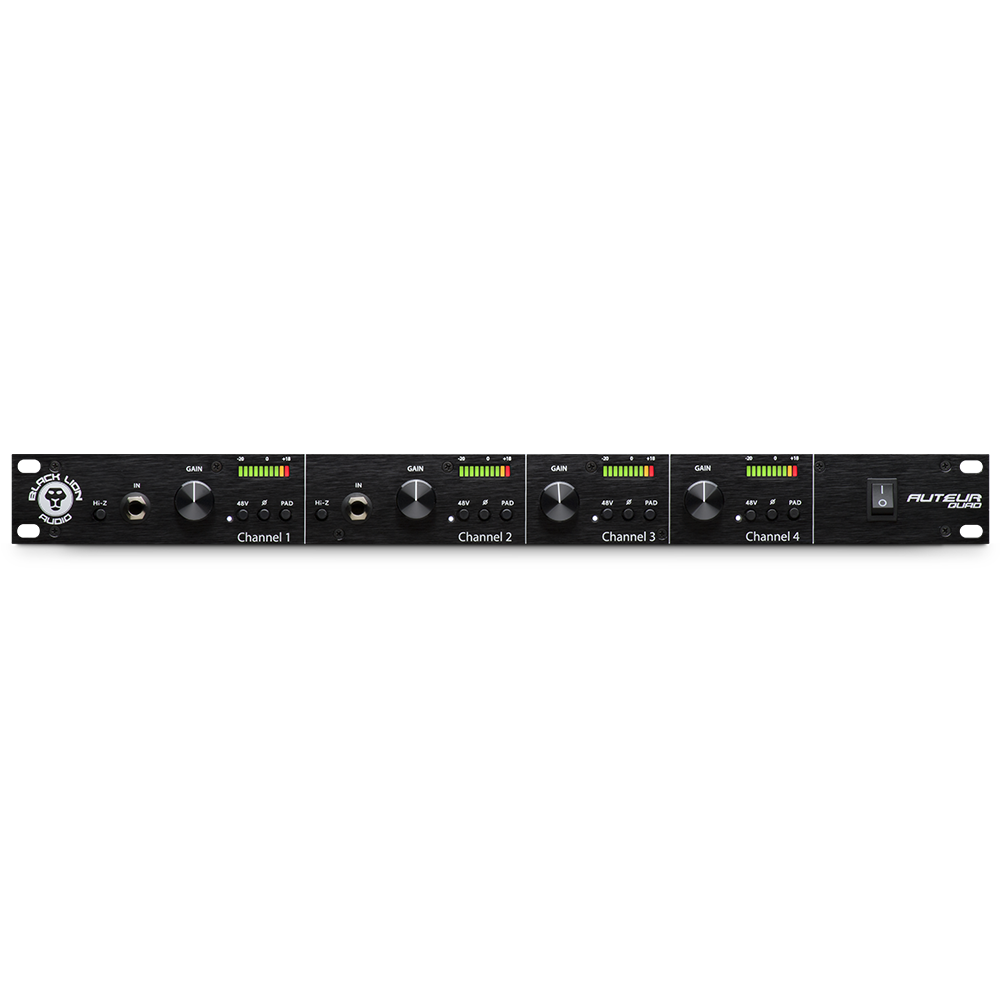

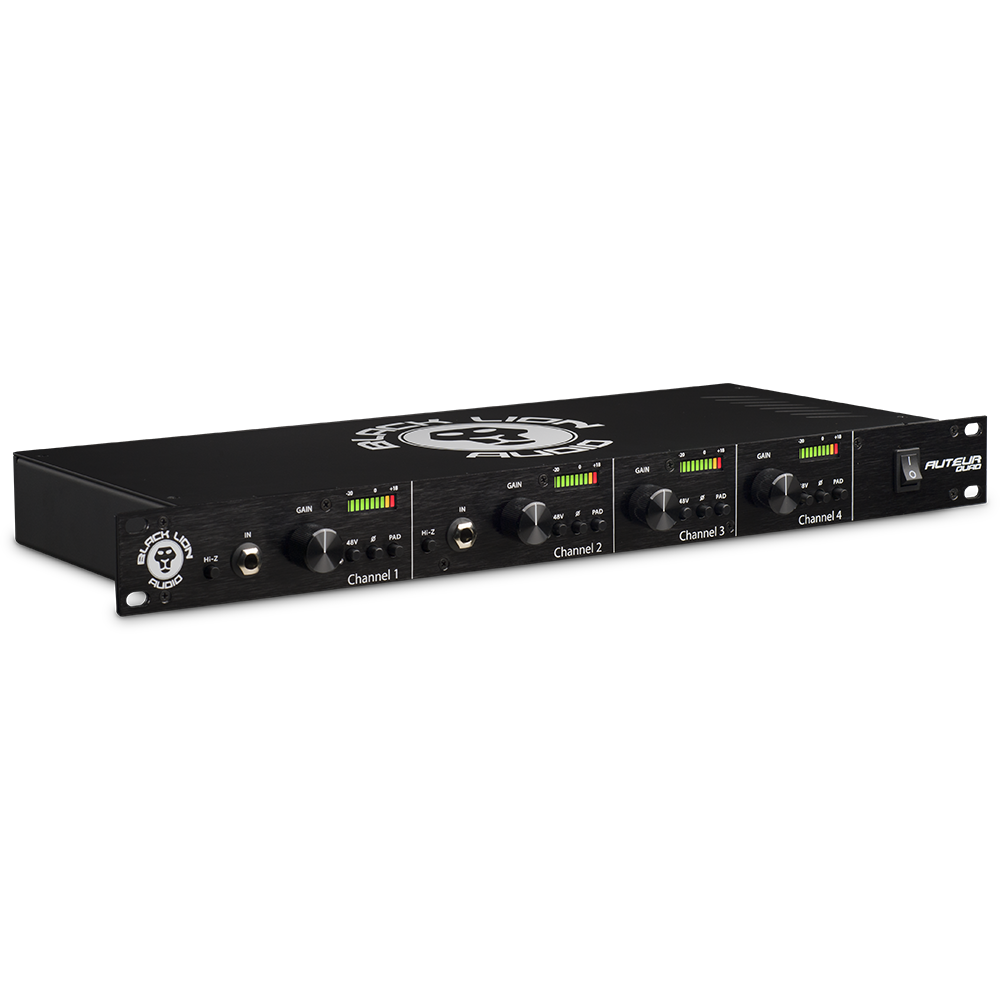

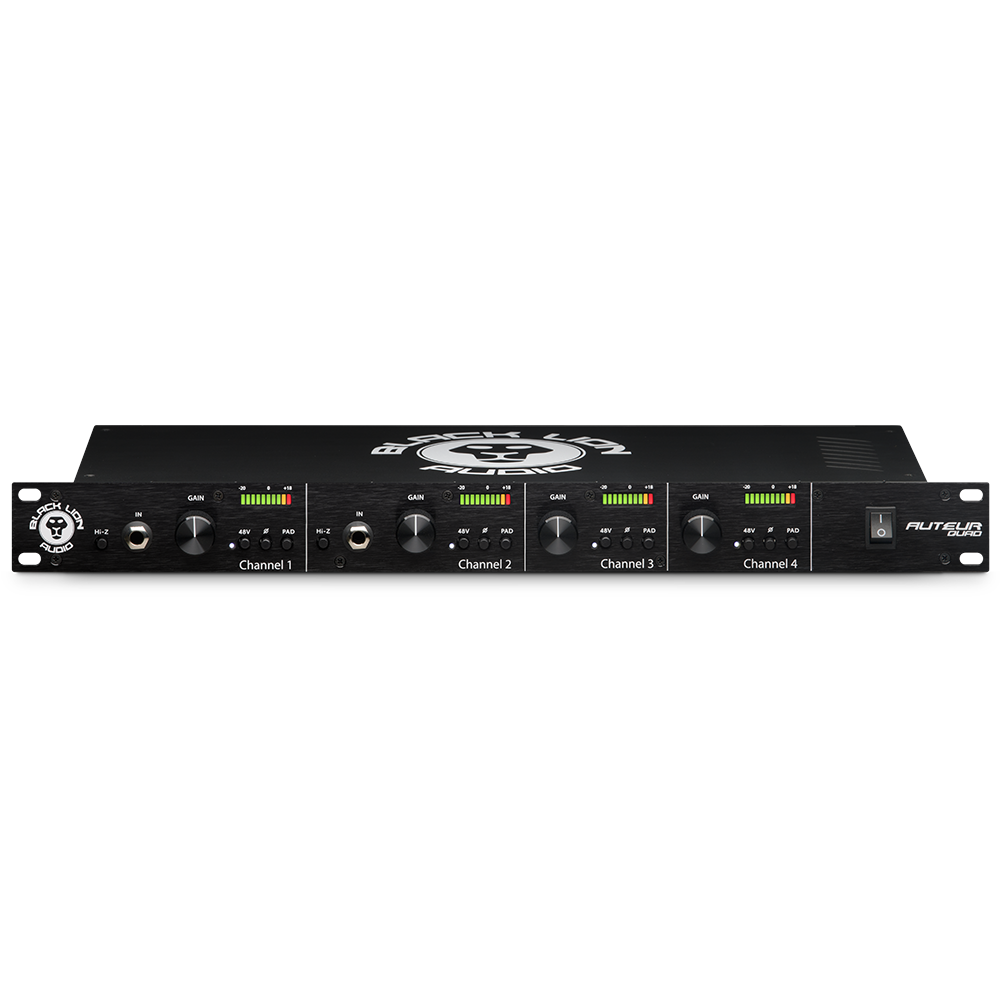

Auteur Quad – Four Channel Mic Pre

Auteur Quad – Four Channel Mic Pre

$799.00

FIND A DEALER

The Auteur Quad is the four channel microphone preamplifier version rack mount of our ever popular Auteur MK2 mic pre. The Auteur has become a studio staple over the last decade and is know for its fast, transparent IC based front end while also providing a fat, colorful back end via edcor transformers. This mixture of vintage and modern design approaches has led the Auteur to be known as the “Swiss army knife of preamps” that sounds great on everything. It especially shines on sources that require detail but also benefit from some thickness such as drums or vocals. Some of the major additions to the Quad over the 2 channel half rack unit would be the all new meters on all four channels as well as borrowing the loved DI circuit from our 500 series Auteur on the first 2 channels. This feature set as well as channel count gives you one of the most affordable preamps in the world at an unbelievable price

SKU: Auteur Quad Category:
000

Features
• 4-channel preamp with ultra-high-speed input stage and Edcor output transformer
• Instrument DI jacks on channels 1 and 2
• Mic/DI bandwidth: 10Hz–30kHz
• 65dB of gain handles any type of microphone, including ribbons

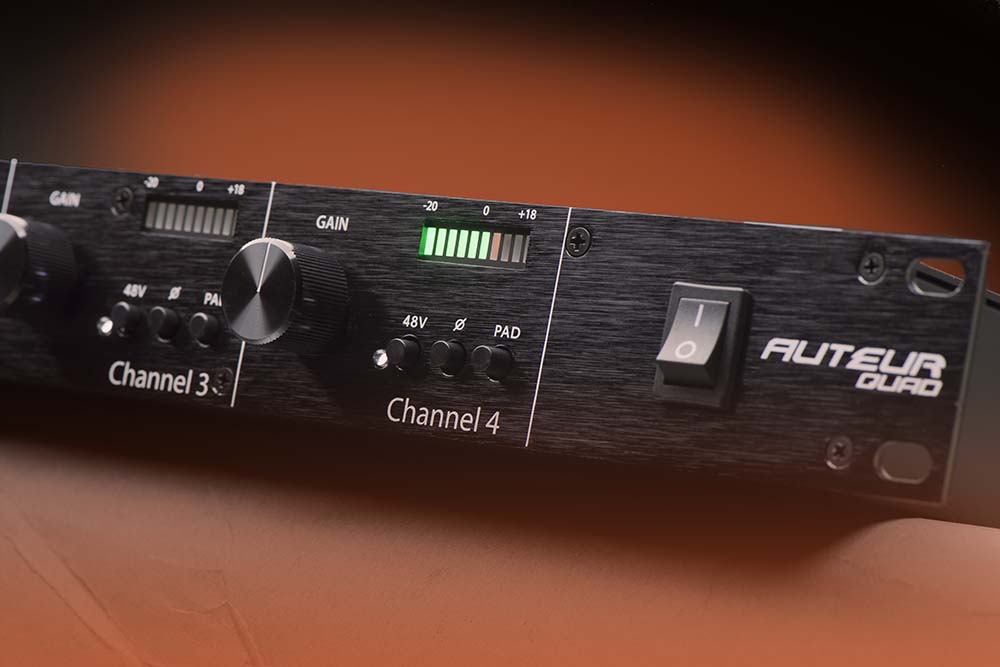

• Metering on all 4 channels
• Per-channel phantom power, polarity reverse, and pad
• Pad: 10dB (mic), 13dB (DI)

Technical Specifications

Preamp Type: Solid State

Number of Channels: 4

Phantom Power: Yes

Pads: -10dB

Polarity Switch: Yes

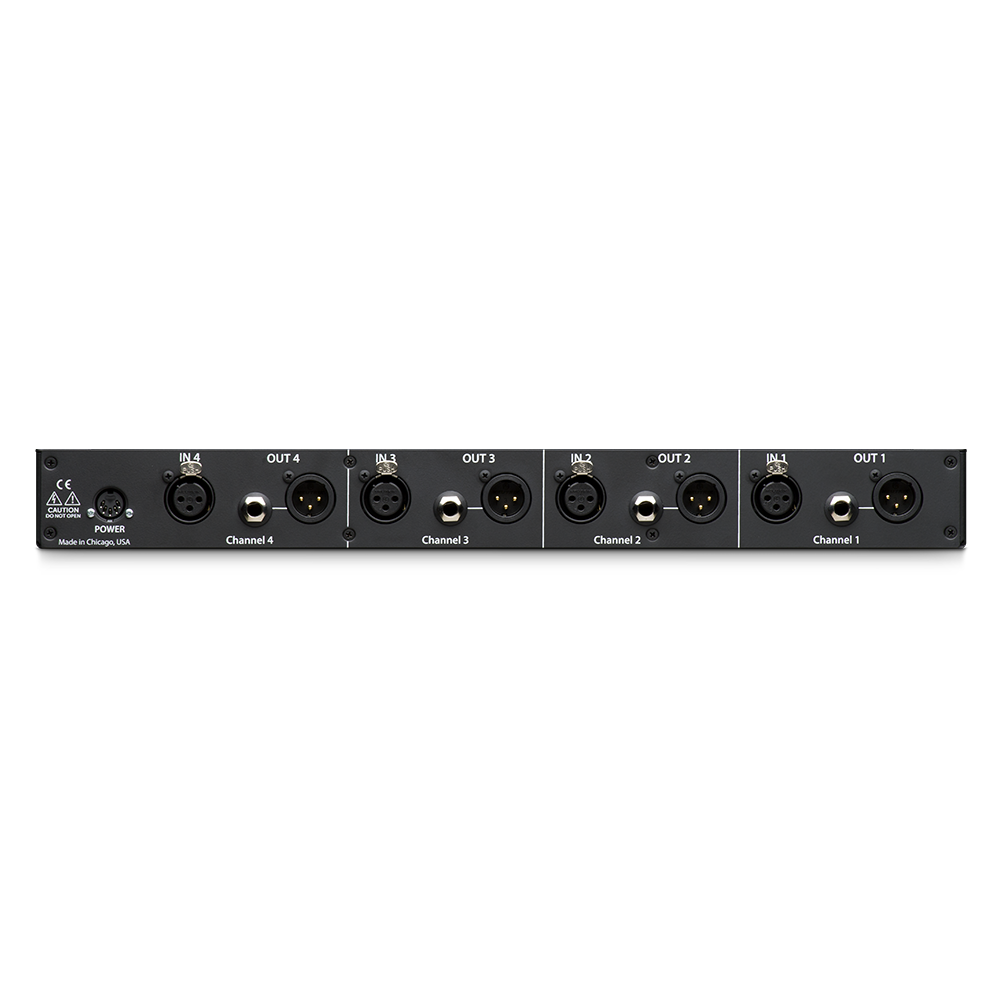

Analog Inputs: 4 x XLR (mic), 2 x 1/4″ (Hi-Z)

Analog Outputs: 4 x XLR, 4 x 1/4″

Frequency Response: 10Hz-30kHz (bandwidth)

Rack Spaces: 1U

Power Source: 4-pin DIN External power supply (included)

Height: 1.8″

Depth: 7.6″

Width: 19″

Weight: 6.1 lbs.

Manufacturer Part Number: AUTEURQUAD

Performance Specifications

Mic Section
• Max Microphone Input Level: +1dBu
• Input Impedance: 6000Ω
• Pad: 10dBu
• Gain (no pad): +14dB to +65dB
• Equivalent Input Noise (noise floor): -108dBu

Mic Section – THD+N (@ +4dBu output)
• .0033% @ +10dBu Gain
• .0054% @ +24dBu Gain
• .0112% @ +32dBu Gain
• .027% @ +40dBu Gain
• .078% @ +50dBu Gain
• .21% @ +62dBu Gain
• Bandwidth (1kHz, 150Ω source, unweighted): 10Hz to 30kHz

D.I. Section
• Max D.I. Input Level: +18dBu
• Input Impedance Balanced: 2.2MΩ
• Input Impedance Unbalanced: 1.1MΩ
• Pad: 13dBu
• Gain: +14dB to +65dB
• Equivalent Input Noise (noise floor): -82dB

D.I. Section – THD+N (@ +4dBu output)
• .007% @ +12dBu
• .11% @ +40dBu
• Bandwidth (1kHz, 600Ω unbalanced source, unweighted): 10Hz to 30kHz

Output Section
• Max Output Level: +26dBu
• Output Impedance: 600Ω
